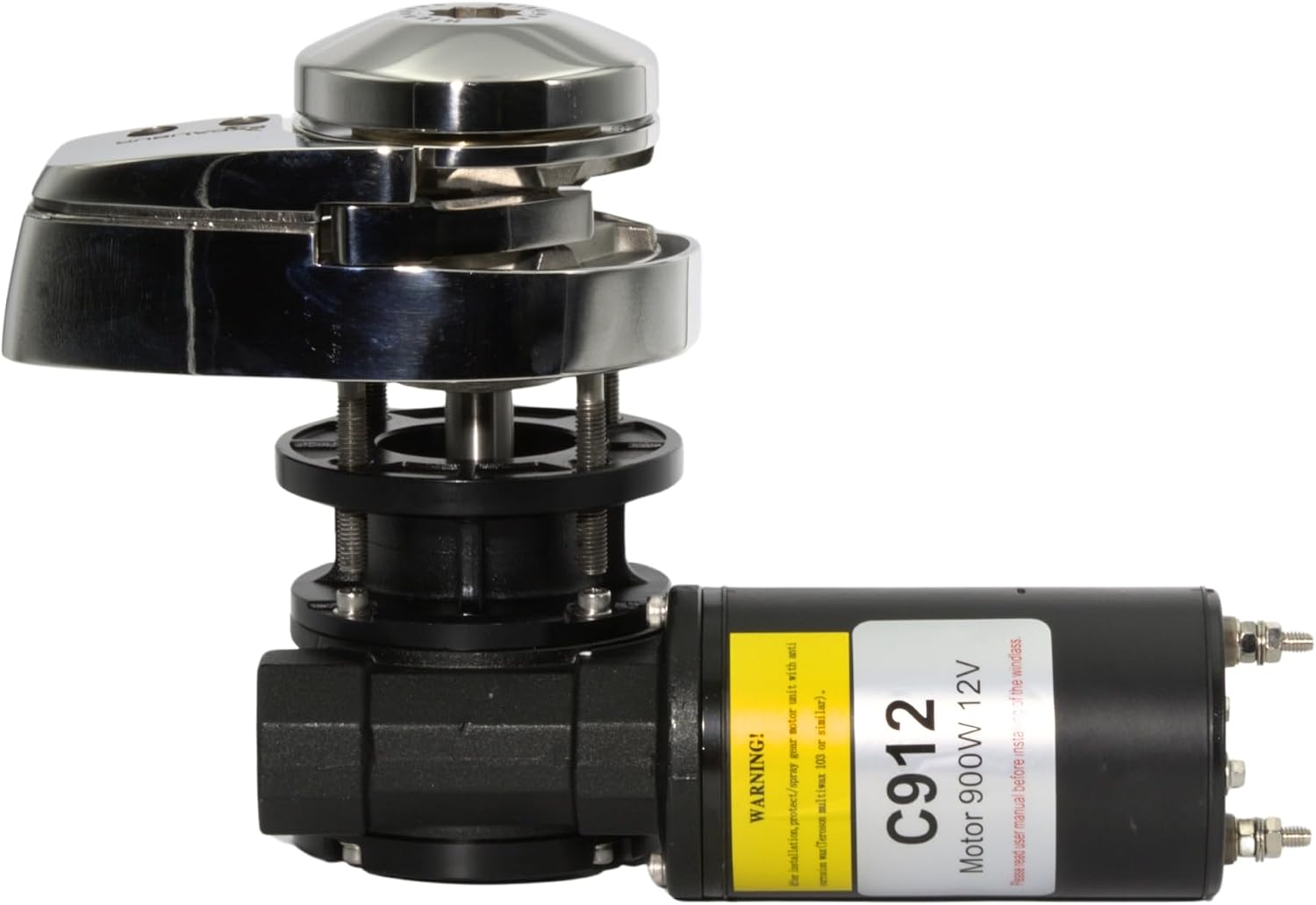

Excalibur Vertical or Horizontal Windlass Anchor Systems - 600W-900W, 12V DC, 992-1452 lbs Pulling Power, 316 Stainless Steel Housing, Chain 1/4 Inch HT G4 and Rope 1/2 Inch, for Boats Up to 40 FT

The EXCALIBUR Horizontal Windlass Anchor System is a rugged, marine-grade anchoring solution for boats up to 40 feet (12 meters) in length. Designed with above-deck installation in mind, it delivers powerful performance and simplified setup for vessels with limited space below deck or thicker topside structures.With a high-efficiency 600W motor, this windlass achieves up to 1200 lbs of pulling power and a 400 lb working load limit. The gypsy accommodates both 1/4 inch HT G4 chain and 1/2 inch (12mm) 3-strand rope, offering versatile anchoring configurations. Its polished AISI 316 stainless steel housing ensures long-term resistance to saltwater corrosion and marine stress.An IP66-rated motor, fast 115 ft/min chain speed, and full installation kit make this windlass ideal for boaters seeking speed, durability, and reliability. Whether you're anchoring in heavy current or tight coastal moorings, EXCALIBUR delivers consistent, hassle-free performance every time.

• [ SPECIFICATIONS ]: Model: EX-WK-C912-K | Motor: 900W | Voltage: 12V DC | Current Draw: 55A | Circuit Breaker: 90A | Waterproof Rating: IP66 | Max Pull: 1452 lbs (660 kg) | Working Load: 484 lbs (220 kg) | Drop Speed: 131 ft/min (40 m/min) | Chain: 1/4" HT G4 | Rope: 1/2" (12mm) 3-Strand | Weight: 20 lbs (9 kg) | Housing: 316 Stainless Steel
• [ COMPLETE WINDLASS KIT INCLUDED ]: Includes everything needed for full installation—900W vertical windlass, 4-wire solenoid, 90A circuit breaker, up/down foot switch, rocker switch, manual top-cap handle, mounting template, hardware, and owner manual for quick setup and reliable operation.

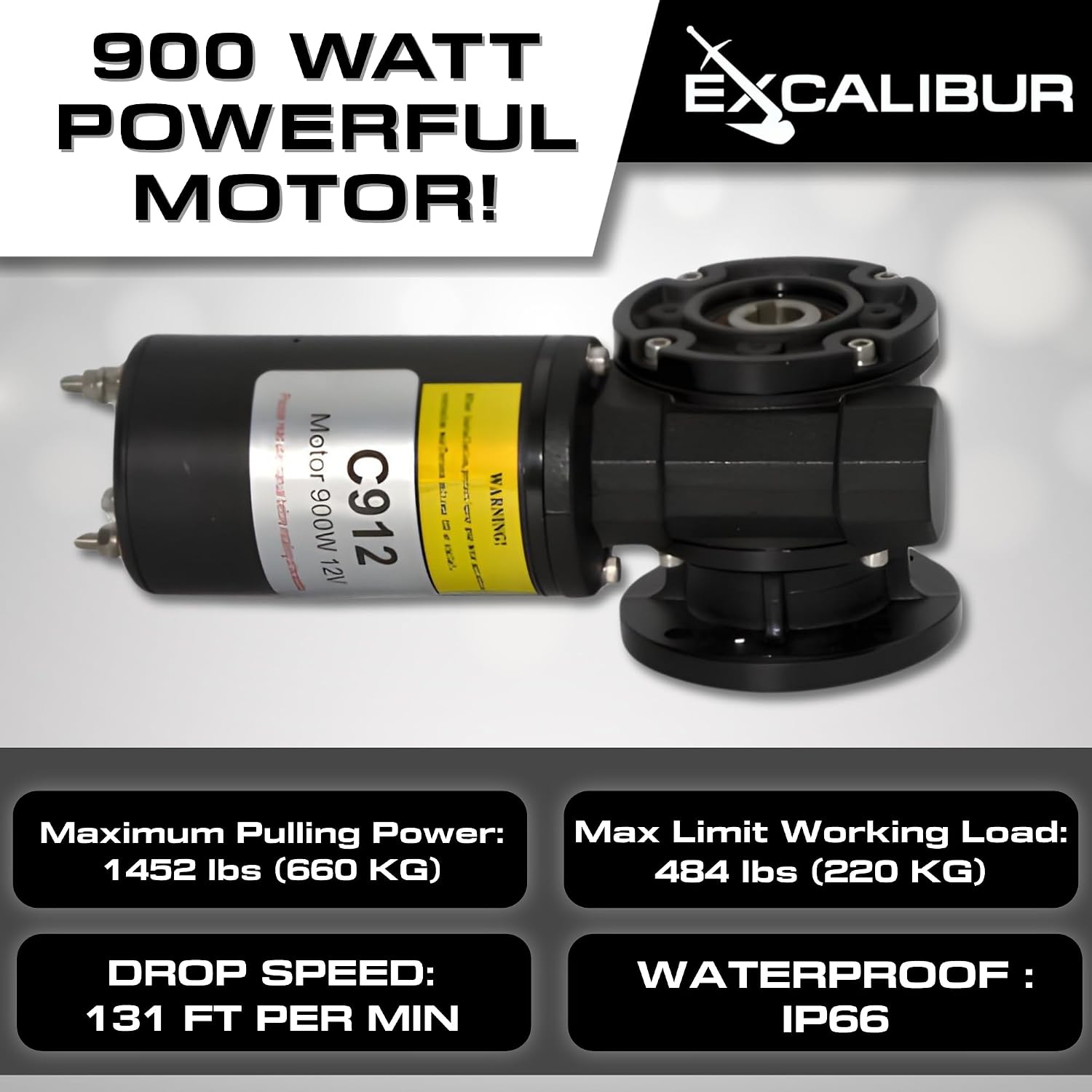

• [ HIGH-POWERED MOTOR FOR HEAVY LOADS ]: Featuring a robust 900W motor, this windlass achieves up to 1452 lbs of pulling power and supports a working load of 484 lbs, providing consistent control in deep waters, strong currents, or heavy anchoring applications.
• [ QUIET UNDER-DECK DESIGN ]: The vertical layout tucks the motor and gear mechanism below deck, resulting in ultra-quiet performance and a clean above-deck appearance. This setup reduces noise during operation and keeps your deck organized and obstruction-free.
• [ AISI 316 MARINE-GRADE STAINLESS STEEL HOUSING ]: Crafted from corrosion-resistant 316 stainless steel, this windlass is designed for long-term exposure to saltwater environments. Hot-forged internal components ensure dependable strength under load in both recreational and commercial settings.
• [ VERSATILE ROPE AND CHAIN GYPSY ]: Compatible with 1/4 inch HT G4 chain and 1/2 inch 3-strand rope, the gypsy gives you flexible options for anchoring configurations depending on water depth, vessel type, and personal preference.
• [ FAST AND EFFICIENT LINE SPEED ]: With a chain retrieval rate of 131 feet per minute (40 meters per minute), this windlass reduces time spent anchoring or weighing anchor, improving safety, convenience, and responsiveness on the water.
• [ ENGINEERED FOR BOATS UP TO 40 FT ]: Built to serve vessels from 20 to 40 feet in length, this windlass delivers powerful anchoring capacity across a broad range of boats—ideal for sailboats, cruisers, and small commercial craft alike.
